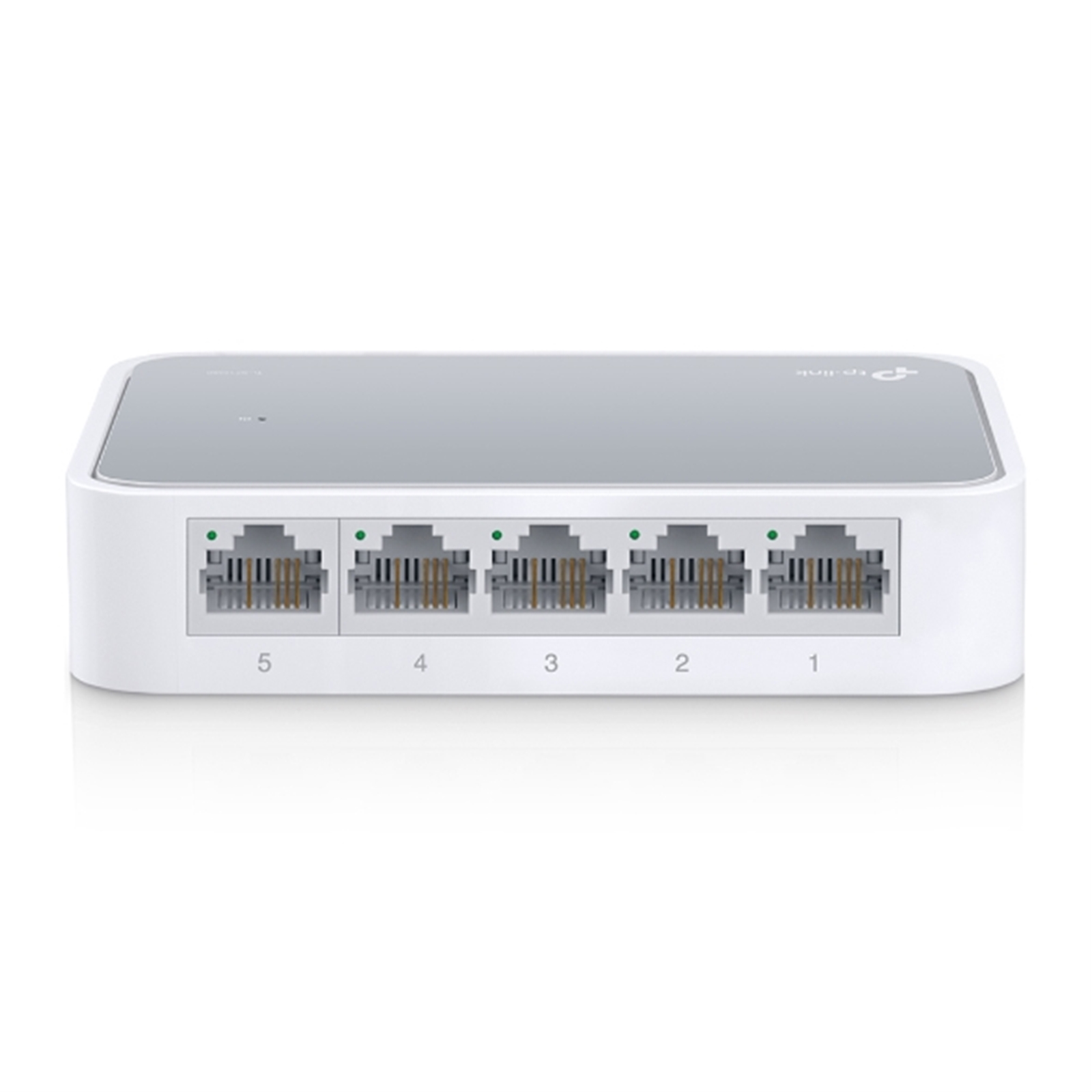

5-Port 10/100Mbps Desktop Switch
Key Features
5 10/100Mbps Auto-Negotiation RJ45 ports, Supports Auto MDI / MDIX
Green Ethernet technology saves power consumption
IEEE 802.3x flow control provides reliable data transfer
Plastic case, desktop design
Plug and play, no configuration required
What This Product Does
The TL-SF1005D 5-Port 10/100Mbps desktop switch provides an easy way to expand your wired network. All 5 ports support auto-MDI/MDIX, eliminating the need to worry about the type of cable to use. Featuring full duplex mode, the TL-SF1005D can process data at a rate of up to 200Mbps making it an ideal choice for expanding your high performance wired network. Moreover, with innovative energy-efficient technology, the TL-SF1005D can save power consumption, making it an eco-friendly solution for your home or office network.
High Performance
TL-SF1005D Fast Ethernet Switch provides 5 10/100Mbps Auto-Negotiation RJ45 ports. All ports support Auto MDI/MDIX function, eliminating the need for crossover cables or Uplink ports. Featuring non-blocking switching architecture,TL-SF1005D forwards and filters packets at full wire-speed for maximum throughput. IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make TL-SF1005D work reliably.
Easy to Use
The auto features of this ethernet switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100 Mbps) and intelligently adjusts for compatibility and optimal performance.
Specifications
HARDWARE FEATURES
Interface
5 10/100Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX
Fan Quantity
Fanless
External Power Supply
External Power Adapter(Output: 5.0VDC / 0.6A)
Dimensions ( W x D x H )
4.1 x 2.8 x 0.9 in. (103.5 x 70 x 22 mm)
Max Power Consumption
1.87W(220V/50Hz)
Max Heat Dissipation
6.38BTU/h
SOFTWARE FEATURES
Transfer Method
Store and Forward
Advanced Functions
Green Technology
802.3X Flow Control, Back Pressure
OTHERS
Certification
FCC, CE, RoHs
Package Contents
5-Port 10/100Mbps Desktop Switch
Power Adapter
Installation Guide
Environment
Operating Temperature: 0?~40? (32?~104?);
Storage Temperature: -40?~60? (-40?~140?);
Operating Humidity: 10%~90% non-condensing;
Storage Humidity: 5%~90% non-condensing
|
DATA TRANSMISSION
|
| MAC address table |
1000 entries |
| Switching capacity |
1 Gbit/s |
| Store-and-forward |
Yes |
DESIGN
|
| Rack mounting |
No |
| Stackable |
No |
| Housing material |
Copper |
ENERGY MANAGEMENT
|
| Power consumption (max) |
1.48 W |
LOGISTICS DATA
|
| Harmonized System (HS) code |
85176990 |
MANAGEMENT FEATURES
|
| Switch type |
Unmanaged |
MULTICAST FEATURES
|
| Multicast features |
Controllable multicast |
NETWORKING
|
| Full duplex |
Yes |
| Networking standards |
IEEE 802.11i |
| Flow control support |
Yes |
| Ethernet LAN data rates |
5000 Mbit/s |
| 10G support |
No |
| Copper ethernet cabling technology |
10GBASE-T |
| VLAN mapping type |
2:2 VLAN Mapping |
| Virtual LAN features |
IP subnet–based VLAN |
OPERATIONAL CONDITIONS
|
| Operating relative humidity (H-H) |
10 - 90% |
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating temperature (T-T) |
0 - 40 °C |
| Storage relative humidity (H-H) |
5 - 95% |
| Heat dissipation |
6.38 BTU/h |
PERFORMANCE
|
| Harmonized System (HS) code |
85176990 |
PORTS & INTERFACES
|
| Basic switching RJ-45 Ethernet ports type |
Fast Ethernet (10/100) |
| Basic switching RJ-45 Ethernet ports quantity |
5 |
| Power connector |
DC-in jack |
POWER OVER ETHERNET (POE)
|
| Power over Ethernet (PoE) |
No |
PROTOCOLS
|
| Supported network protocols |
CSMA/CD, TCP/IP |
SECURITY
|
| Security algorithms |
HTTPS |
| Authentication type |
HWTACACS |
| Authentication |
Auto VLAN |
| Queue scheduling algorithms |
SP |
| DHCP features |
DHCP server |
WEIGHT & DIMENSIONS
|
| Height |
22 mm |
| Width |
103.5 mm |
| Depth |
70 mm |
