Target Components

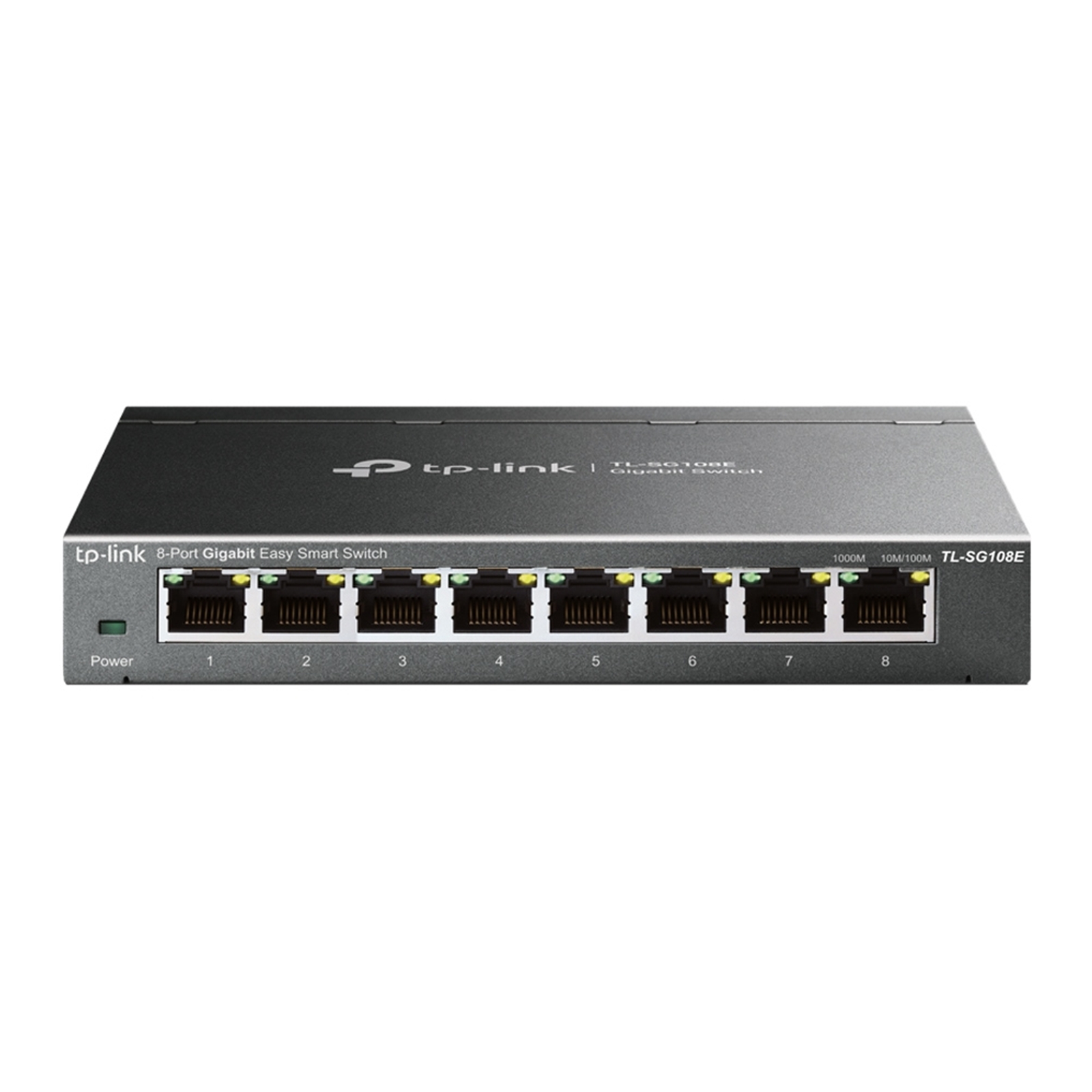

8-Port Gigabit Easy Smart Switch

Key Features
8 10/100/1000Mbps RJ45 ports
Plug and play, with no configuration required
Durable metal casing of superior quality and professional appearance
Intelligent management via a web user interface and downloadable utility
Green technology reduces power consumption

Link Your Devices, Create Convenient Business
The 8-Port Gigabit Easy Smart Desktop Switch provides an easy way to expand your wired network. Deal with your business quickly and easily, whether you are at home or in the office.

Gigabit Ports for Maximum Speed
8 non-blocking 10/100/1,000 Mbps ports make it possible to transfer large, bandwidth-intensive files with no interference.

QoS for a Lag-Free Experience
Ensures smooth traffic for latency sensitive applications, such as voice and video

IGMP Snooping for Multicast Optimization
Ensures a better network experience, especially for applications like IPTV, by optimizing multimedia traffic delivery.

VLAN for Security
Helps to create network with higher security and better overall performance by dividing network into smaller groups

Management Made Easy
TL-SG108E offers network monitoring for users to observe traffic behavior. Through its web-based user interface and management utility, the TL-SG108E offers a variety of useful features, including network monitoring, traffic prioritization, and enhanced QoS.

Durable Metal Casing
The interior components of TL-SG108E are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SG108E delivers switching performance you can depend on.

Go Green with Your Ethernet
TP-Link's latest generation of Easy Smart Switches make use of innovative energy-saving technologies. Power consumption automatically adjusts according to link status and cable length, allowing you to expand your network while minimizing your carbon footprint. Save the planet and lower your energy bills — it's a win-win!

Specifications

HARDWARE FEATURES

Standards and Protocols
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p

Interface
8 10/100/1000 Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX

Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100O STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100O STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100O STP (maximum 100m)

Fan Quantity
Fanless

Power Supply
External Power Adapter(Output: 9 VDC/ 0.6 A)

Dimensions ( W x D x H )
6.2 x 4.0 x 1.0 in (158 x 101 x 25 mm)

Max Power Consumption
3.68 W (220 V/ 50 Hz)

Max Heat Dissipation
12.55 BTU/h

PERFORMANCE

Switching Capacity
16 Gbps

Packet Forwarding Rate
11.9 Mpps

MAC Address Table
4 K

Packet Buffer Memory
1.5 Mb

Jumbo Frame
16 KB

SOFTWARE FEATURES

Quality of Service
Support Port-based/802.1p/DSCP priority
Support 4 priority queues
Rate Limit
Storm Control

L2 Features
IGMP Snooping V1/V2/V3
Static Link Aggregation
Port Mirroring
Cable Diagnostics
Loop Prevention

VLAN
Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN

Transmission Method
Store-And-Forward

OTHERS

Certification
FCC, CE, RoHS

Package Contents
TL-SG108E
Power Adapter
Installation Guide
Rubber Feet

System Requirements
Microsoft® Windows® for running Utility

Environment
Operating Temperature: 0?~40? (32?~104?)
Storage Temperature: -40?~70? (-40?~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
